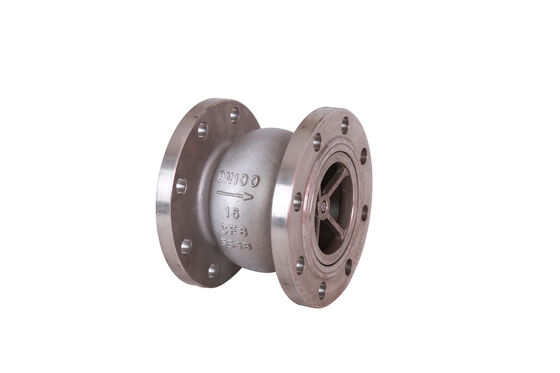

304 Stainless Steel Silent Check Valve HC41X-16P with PN16 Pressure Rating and Wafer-Style Design

  • 304 Stainless Steel Silent Check Valve HC41X-16P with PN16 Pressure Rating and Wafer-Style Design
Lugar de origem China
Marca YOUWEI

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.

x
Detalhes do produto
Material Fundição, Latão, Aço Inoxidável, Ferro Dúctil, GGG50 Tamanho da porta DN50-DN1200,Padrão,2"-24",DN50-800,3/4"
Poder Manual, acionado elétrico, hidráulico, operado por volante Pressão Pressão Média, Baixa Pressão, PN10-16, PN1.0/PN1.6, 250 PSI
temperatura do meio Temperatura média, temperatura normal, baixa temperatura, -10 ~ 100 ℃ Mídia Água, óleo etc., gás e assim por diante
Aplicativo Geral, irrigação, distribuição de água, indústria, sistema de água Estrutura Válvula de gaveta, borboleta e não ascendente
Padrão ou não padrão Padrão Nome do produto válvula de gaveta, válvula de gaveta elétrica de ferro fundido com haste não ascendente DN40-DN600,
Padrão DIN,BS,JIS,F5;AWWA C509/C515;ANSI,DIN3352 Tamanho DN40-DN600,DN50 ~ DN 1000,2''-24'',DN15 To100
Conexão Extremidades de flange, flange duplo, BSP, extremidades de soquete, rosca fêmea Material do corpo Ferro dúctil, DI/CI, DI, ferro fundido, latão
cor Azul, solicitação do cliente, exigência do cliente, amarelo, cinza Médio Água, Água Óleo Gás
Tipo Válvula gaveta, normalmente aberta, 2 vias, haste não ascendente/ NRS Tipo de válvula válvula de porta
Selo revestido de borracha, metal, PTFE
Destacar

304 Stainless Steel Silent Check Valve

,

PN16 Pressure Rating Silent Check Valve

,

Wafer-Style Design Silent Check Valve
Deixe um recado
Descrição de produto
304 Silent Check Valve HC41X-16P
The HC41X-16P is a precision-engineered silent check valve designed to prevent reverse flow in pipeline systems with minimal pressure loss and exceptional operational quietness.
Construction & Materials
Constructed primarily from AISI 304 (CF8) Stainless Steel, this valve offers excellent corrosion resistance for a wide range of media. The main body, spring, and disc are manufactured from 304 stainless steel, while the sealing element consists of durable Nitrile (NBR) or Fluorocarbon (FKM) O-ring or gasket.
Operating Principle
Utilizes a spring-assisted, axial-guided disc mechanism housed within a compact wafer-style body. The guided disc moves linearly along the valve axis, opening against spring force and fluid pressure, and closing swiftly and smoothly under spring tension and reverse flow.
Key Features
  • Silent Operation: Eliminates water hammer and associated pipeline noise through rapid, controlled closing
  • Compact Design: Wafer-style construction requires minimal installation space and fits between standard ANSI/PN flanges
  • Pressure Rating: Rated for PN16 (16 bar), suitable for Class 125 service
  • Flow Efficiency: Streamlined, full-port flow path results in very low head loss coefficient
  • Flexible Installation: Can be installed in both horizontal and vertical pipelines with upward flow
Technical Specifications
Model HC41X-16P
Body Material AISI 304 Stainless Steel
Pressure Rating PN16 (16 bar) / Class 125
Sealing Material Nitrile (NBR) or Fluorocarbon (FKM)
Installation Horizontal and vertical (upward flow)
Applications
Ideal for applications where noise, water hammer, and space are critical concerns. Widely used in HVAC systems, water supply and treatment, irrigation, chemical processing, food and beverage, pharmaceutical industries, and general industrial plumbing systems handling water, air, oils, and mild corrosive fluids.
Quality Assurance
Designed and manufactured to meet relevant industry standards for dimension, pressure, and performance. Factory tested for shell strength and seat leakage.
The HC41X-16P 304 Stainless Steel Silent Check Valve is the optimal solution for modern piping systems demanding reliable, non-slam check valve performance. Its combination of corrosion-resistant construction, silent spring-assisted operation, compact wafer design, and low flow resistance makes it a superior choice for protecting pumps and equipment while ensuring quiet, efficient, and maintenance-friendly system operation.
